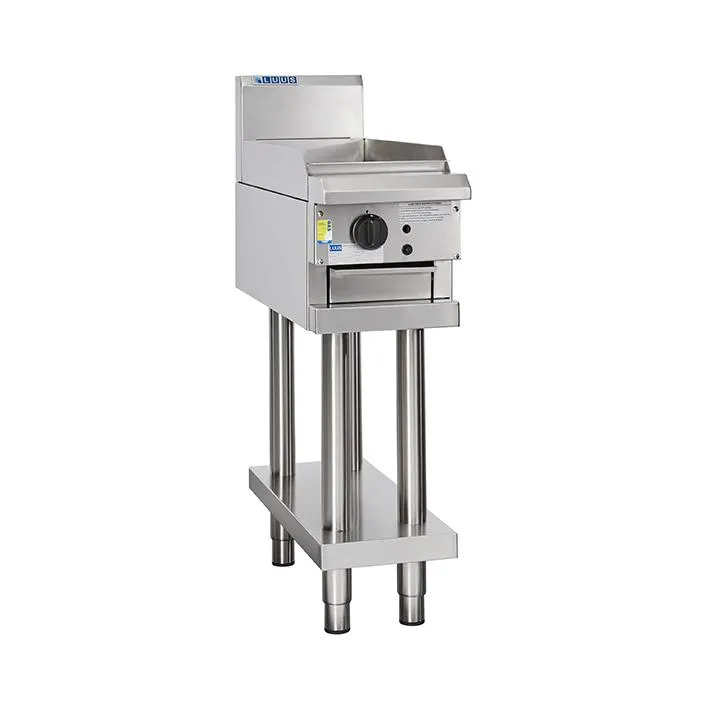

LUUS Professional Chrome Plated Griddle 300mm - CS-3P (CP)

CS griddles can be combined with chargrills for configurations ranging from 300mm up to 1200mm wide. Ample heat from the burners are spread evenly across the cooking 16mm thick mild steel surface. Chrome plating and ribbed finishes available as an option extra.
15 month ‘Platinum Warranty’

Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 16mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-3P plate: 290mm x 540mm; 0.16m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil tray 1.2mm stainless steel

Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Modular Professional series design

Dimensions
• 300mm x 800mm x 1100mm H
• Working height 900mm
• Weight 53kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 73kg

Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Supplied with LP gas regulator

Cleaning & Servicing
• Easy access to all parts & components from front
